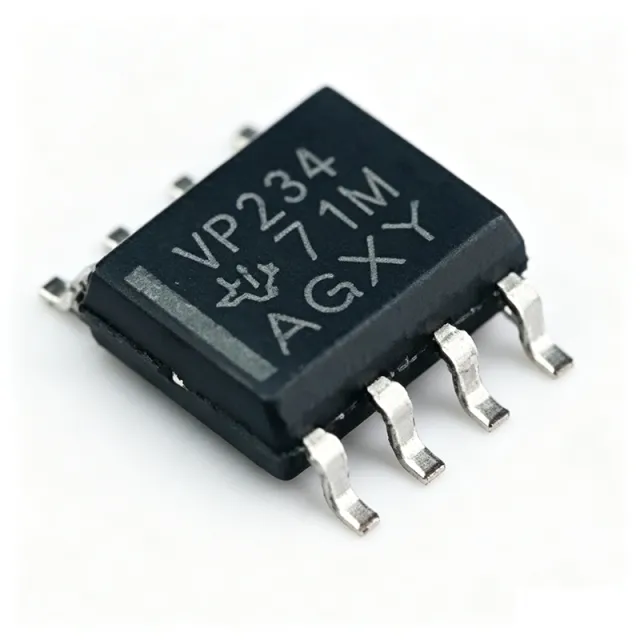

SN65HVD234DR - 3.3V CAN Transceiver with Sleep Mode | TI
MPN: SN65HVD234DR ✓ Active| Qty | Unit Price | Extended |
|---|---|---|
| 1 | $1.52 | $1.52 |
| 10 | $1.36 | $13.60 |
| 100 | $1.09 | $109.00 |
| 500 | $0.92 | $460.00 |
| 1,000 | $0.78 | $780.00 |
Drop-in alternatives for SN65HVD234DR — same package, pin-to-pin compatible. Different-package parts requiring PCB rework are excluded.
Quick Comparison Tool — Select alternative parts for side-by-side comparison:
SN65HVD234D
✅ Drop-In📋 Reference alternative (not in catalog)
SN65HVD230DR
✅ Drop-In✓ In Stock
$0.58 / Unit
View Datasheet →SN65HVD232DR
✅ Drop-In📋 Reference alternative (not in catalog)
SN65HVD233DR
✅ Drop-In📋 Reference alternative (not in catalog)
TJA1042T
✅ Drop-In📋 Reference alternative (not in catalog)
MCP2561-E/SN
✅ Drop-In📋 Reference alternative (not in catalog)
SN65HVD234DR Maximum Ratings & Electrical Characteristics
| Supply Voltage Range | 3.0 V to 3.6 V |
| Number of Channels | 1/1 (Half-Duplex) |
| Protocol | CAN |
| Signaling Rate (Max) | 1 Mbps |
| Bus Fault Voltage | -36 V to 36 V |
| ESD Protection (HBM) | 16 kV |
| Common-Mode Input Range | -12 V to 12 V |
| Number of Nodes | 120 |
| Sleep Mode Current | 0.05 µA (typical) |
| Silent Mode Current | 370 µA (typical) |
| Operating Temperature Range | -40°C to 125°C |
| Package | SOIC-8 (D) |
| Mounting Type | Surface Mount |
| RoHS Status | Compliant |
| LVTTL I/O Tolerance | 5 V |
SN65HVD234DR Pin Configuration
| Pin 1 | TXD — Transmit data input |
| Pin 2 | GND — Ground |
| Pin 3 | VCC — Supply voltage (3.3V) |
| Pin 4 | RXD — Receive data output |
| Pin 5 | RS — Mode select (sleep/standby) |
| Pin 6 | CANL — Low-level CAN bus |
| Pin 7 | CANH — High-level CAN bus |
| Pin 8 | NC — No connect |
Safe Operating Area (SOA) & Thermal Characteristics
No official SOA curve available for this digital IC. Always operate within absolute maximum ratings specified in the datasheet. Ensure adequate cooling and derate as needed.
Typical Applications
SN65HVD234DR is suitable for 6 applications: Automotive Body Control Module, Industrial Automation Network, Building Automation System, Medical Equipment, Electric Vehicle Charging Station, Marine Electronics.
Automotive Body Control Module
The SN65HVD234DR is ideal for automotive body control modules (BCMs) that manage lighting, windows, and locks. Its 3.3-V operation and low-power sleep mode reduce battery drain when the vehicle is off. The ±36-V bus fault protection and 16-kV ESD rating ensure robustness against automotive transients. With a signaling rate of 1 Mbps, it supports real-time control commands. The wide common-mode range of ±12 V handles ground shifts between modules. Its SOIC-8 package fits compact BCM PCBs. The sleep mode (0.05 µA) is crucial for always-on nodes, and the device can be awakened by bus activity. This transceiver is a reliable choice for CAN networks in modern vehicles.
Recommended
Industrial Automation Network
In industrial automation, the SN65HVD234DR provides reliable CAN communication between PLCs, sensors, and actuators. Its 3.3-V supply is common in modern industrial electronics, and the 1-Mbps data rate supports fast control loops. The high input impedance allows up to 120 nodes on a single bus, reducing the need for repeaters. The ±36-V fault protection guards against wiring errors and inductive spikes. The device operates over -40°C to 125°C, suitable for factory floors. The sleep mode is useful for energy-saving in battery-backed systems. Its robust ESD protection (16 kV HBM) ensures reliability in harsh environments. The SOIC-8 package is easy to assemble and replace.
Recommended
Building Automation System
The SN65HVD234DR is well-suited for building automation systems, such as HVAC controls and lighting networks. Its low-power sleep mode (0.05 µA) is ideal for battery-powered sensors and actuators. The 3.3-V operation aligns with low-voltage microcontrollers. The device supports up to 120 nodes, enabling large-scale networks. The ±36-V fault protection ensures reliability in long cable runs. The wide common-mode range handles ground potential differences between floors. The 1-Mbps data rate is sufficient for control commands. The SOIC-8 package is compact for space-constrained devices. Its ESD protection (16 kV) is essential for installations where cables may be touched.
Recommended
Medical Equipment
In medical equipment, the SN65HVD234DR provides reliable CAN communication for patient monitoring and diagnostic devices. Its 3.3-V operation is common in portable medical electronics. The low-power sleep mode extends battery life in wearable monitors. The device's robust ESD protection (16 kV) is crucial in medical environments. The ±36-V fault protection ensures safety in case of wiring faults. The 1-Mbps data rate supports real-time data transmission. The wide common-mode range handles ground shifts in complex systems. The SOIC-8 package is suitable for compact PCBs. The device operates over -40°C to 125°C, covering clinical temperature ranges.
Recommended
Electric Vehicle Charging Station
The SN65HVD234DR is used in EV charging stations for communication between the charger and the vehicle's battery management system (BMS). Its 3.3-V operation is compatible with modern BMS controllers. The 1-Mbps data rate supports fast charging handshake protocols. The ±36-V fault protection is essential for outdoor installations. The device's wide common-mode range handles ground shifts between the charger and vehicle. The sleep mode reduces power consumption when idle. The SOIC-8 package is easy to integrate into charging station PCBs. Its ESD protection (16 kV) ensures reliability in outdoor environments. The device operates over -40°C to 125°C, suitable for extreme weather.
Recommended
Marine Electronics
The SN65HVD234DR is suitable for marine electronics, such as navigation systems and engine control. Its 3.3-V operation is common in marine electronics. The device's robust ESD protection (16 kV) is crucial in saltwater environments. The ±36-V fault protection guards against wiring corrosion and shorts. The 1-Mbps data rate supports real-time navigation data. The wide common-mode range handles ground shifts between different systems. The sleep mode reduces battery drain when the vessel is docked. The SOIC-8 package is compact for space-constrained installations. The device operates over -40°C to 125°C, covering marine temperature ranges.
Recommended
Recommended Products Summary
Engineering reference data for SN65HVD234DR — comparison, design guidance, and compliance information.
Selection Guide
Comparison with Alternatives
| Parameter | This Product | SN65HVD234D | SN65HVD230DR | SN65HVD232DR | SN65HVD233DR | TJA1042T | MCP2561-E/SN |
|---|---|---|---|---|---|---|---|
| Package | SOIC-8 (D) | SOIC-8 (D) | SOIC-8 (D) | SOIC-8 (D) | SOIC-8 (D) | SOIC-8 | SOIC-8 |
| Brand | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | NXP Semiconductors | Microchip Technology |
| Supply Voltage | 3.0 V to 3.6 V | 3.0 V to 3.6 V | 3.0 V to 3.6 V | 3.0 V to 3.6 V | 3.0 V to 3.6 V | 4.5 V to 5.5 V | 3.0 V to 3.6 V |
| Signaling Rate | 1 Mbps | 1 Mbps | 1 Mbps | 1 Mbps | 1 Mbps | 1 Mbps | 1 Mbps |
| Sleep Mode | Yes (0.05 µA) | Yes (0.05 µA) | No (Standby 370 µA) | No | No (Standby 370 µA) | No (Standby) | No (Standby) |
| Bus Fault Protection | ±36 V | ±36 V | ±36 V | ±36 V | ±36 V | ±58 V | ±40 V |
| ESD Protection | 16 kV HBM | 16 kV HBM | 16 kV HBM | 16 kV HBM | 16 kV HBM | 8 kV HBM | 12 kV HBM |
| Number of Nodes | 120 | 120 | 120 | 120 | 120 | 32 | 120 |
Key Differentiators
- Sleep mode with ultra-low current (vs SN65HVD230DR)
- Higher ESD protection (vs TJA1042T)
- Supports more nodes (vs TJA1042T)
Design Notes
Place the SN65HVD234DR close to the CAN bus connector to minimize trace length and reduce EMI. Use a 100 nF decoupling capacitor close to the VCC pin and a 10 µF bulk capacitor on the power rail. Ensure a solid ground plane under the device to provide a low-impedance return path for high-frequency currents.
Do not forget to terminate the CAN bus with 120 Ω resistors at both ends. Incorrect termination leads to signal reflections and communication errors. Also, ensure the RS pin is properly biased: high for sleep mode, low for normal operation. Leaving RS floating can cause unpredictable behavior.
The SN65HVD234DR has a maximum junction temperature of 150°C. In normal operation, power dissipation is low (typically <100 mW), but in fault conditions, the bus pins may dissipate more. Ensure adequate copper area on the PCB for heat sinking, especially in high-temperature environments. The SOIC-8 package has a thermal resistance of approximately 150°C/W.
Compliance Information
RoHS compliant per TI product page. Not AEC-Q100 qualified; for automotive grade, consider TCAN1044A-Q1.
