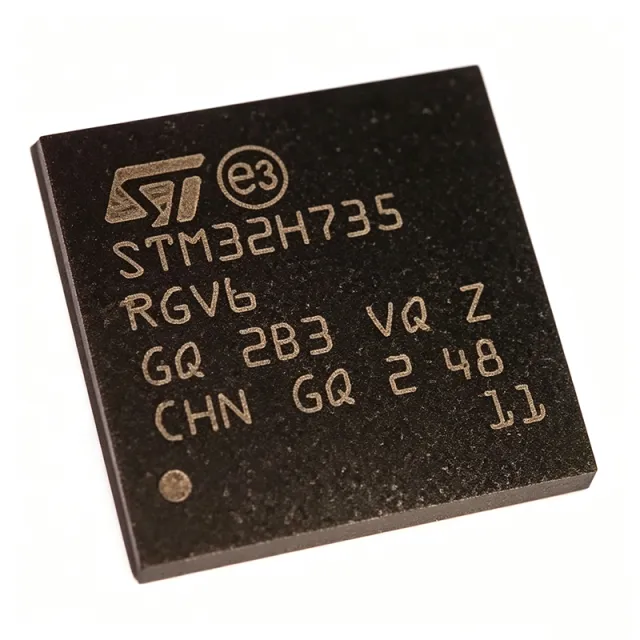

STM32H735RGV6 - 550MHz Cortex-M7 MCU with 1MB Flash | STMicroelectronics
MPN: STM32H735RGV6 β Active| Qty | Unit Price | Extended |
|---|---|---|
| 1 | $12.5 | $12.50 |
| 10 | $11.25 | $112.50 |
| 100 | $10 | $1,000.00 |
| 500 | $9 | $4,500.00 |
| 1,000 | $8.1 | $8,100.00 |
Drop-in alternatives for STM32H735RGV6 β same package, pin-to-pin compatible. Different-package parts requiring PCB rework are excluded.
Quick Comparison Tool β Select alternative parts for side-by-side comparison:
STM32H735RGV6T6
β Drop-Inπ Reference alternative (not in catalog)
STM32H743RGV6
β Drop-Inπ Reference alternative (not in catalog)
STM32H733RGV6
β Drop-Inπ Reference alternative (not in catalog)
STM32H750RGV6
β Drop-Inπ Reference alternative (not in catalog)
STM32H745RGV6
β Drop-Inπ Reference alternative (not in catalog)
STM32H735RGV6 Maximum Ratings & Electrical Characteristics
| Core | Arm Cortex-M7 |
| Max Clock Speed | 550 MHz |
| Flash Memory | 1 MB |
| SRAM | 564 KB |
| Package | LQFP64 (10x10 mm, 0.5 mm pitch) |
| Supply Voltage | 1.62V to 3.6V |
| Operating Temperature | -40Β°C to +85Β°C |
| GPIO Pins | 54 |
| ADC | 2x 12-bit, up to 5 MSPS |
| DAC | 2x 12-bit |
| Timers | Multiple 16-bit and 32-bit timers |
| Communication Interfaces | Ethernet, USB OTG HS, FDCAN, SPI, I2C, UART, SAI |
| Cryptographic Acceleration | AES, DES, 3DES, hash |
| Chrom-ART Accelerator | Yes (2D graphics) |
| RoHS Status | Compliant |
STM32H735RGV6 Pin Configuration
| Pin 1 | VBAT β Backup battery supply |
| Pin 2 | PC13 β GPIO / RTC output |
| Pin 3 | PC14 β GPIO / OSC32_IN |
| Pin 4 | PC15 β GPIO / OSC32_OUT |
| Pin 5 | PF0 β GPIO / OSC_IN |
| Pin 6 | PF1 β GPIO / OSC_OUT |
| Pin 7 | NRST β Reset (active low) |
| Pin 8 | VDD β Digital power supply |
| Pin 9 | VSS β Ground |
| Pin 10 | VDDA β Analog power supply |
| Pin 11 | PA0 β GPIO / ADC input |
| Pin 12 | PA1 β GPIO / ADC input |
| Pin 13 | PA2 β GPIO / USART2_TX |
| Pin 14 | PA3 β GPIO / USART2_RX |
| Pin 15 | PA4 β GPIO / SPI1_NSS |
| Pin 16 | PA5 β GPIO / SPI1_SCK |
| Pin 17 | PA6 β GPIO / SPI1_MISO |
| Pin 18 | PA7 β GPIO / SPI1_MOSI |
| Pin 19 | PA8 β GPIO / USB_OTG_FS_SOF |
| Pin 20 | PA9 β GPIO / USB_OTG_FS_VBUS |
| Pin 21 | PA10 β GPIO / USB_OTG_FS_ID |
| Pin 22 | PA11 β GPIO / USB_OTG_FS_DM |
| Pin 23 | PA12 β GPIO / USB_OTG_FS_DP |
| Pin 24 | PA13 β GPIO / SWDIO |
| Pin 25 | PA14 β GPIO / SWCLK |
| Pin 26 | PA15 β GPIO / JTDI |
| Pin 27 | PB0 β GPIO / ADC input |
| Pin 28 | PB1 β GPIO / ADC input |
| Pin 29 | PB2 β GPIO / BOOT1 |
| Pin 30 | PB3 β GPIO / JTDO |
| Pin 31 | PB4 β GPIO / NJTRST |
| Pin 32 | PB5 β GPIO / I2C1_SMBA |
| Pin 33 | PB6 β GPIO / I2C1_SCL |
| Pin 34 | PB7 β GPIO / I2C1_SDA |
| Pin 35 | PB8 β GPIO / I2C1_SCL |
| Pin 36 | PB9 β GPIO / I2C1_SDA |
| Pin 37 | PB10 β GPIO / I2C2_SCL |
| Pin 38 | PB11 β GPIO / I2C2_SDA |
| Pin 39 | PB12 β GPIO / SPI2_NSS |
| Pin 40 | PB13 β GPIO / SPI2_SCK |
| Pin 41 | PB14 β GPIO / SPI2_MISO |
| Pin 42 | PB15 β GPIO / SPI2_MOSI |
| Pin 43 | PC0 β GPIO / ADC input |
| Pin 44 | PC1 β GPIO / ADC input |
| Pin 45 | PC2 β GPIO / ADC input |
| Pin 46 | PC3 β GPIO / ADC input |
| Pin 47 | PC4 β GPIO / ADC input |
| Pin 48 | PC5 β GPIO / ADC input |
| Pin 49 | PC6 β GPIO / SDMMC1_CK |
| Pin 50 | PC7 β GPIO / SDMMC1_CMD |
| Pin 51 | PC8 β GPIO / SDMMC1_D0 |
| Pin 52 | PC9 β GPIO / SDMMC1_D1 |
| Pin 53 | PC10 β GPIO / SDMMC1_D2 |
| Pin 54 | PC11 β GPIO / SDMMC1_D3 |
| Pin 55 | PC12 β GPIO / SDMMC1_CK |
| Pin 56 | PC13 β GPIO / RTC_AF1 |
| Pin 57 | PC14 β GPIO / OSC32_IN |
| Pin 58 | PC15 β GPIO / OSC32_OUT |
| Pin 59 | PD0 β GPIO / FMC_D2 |
| Pin 60 | PD1 β GPIO / FMC_D3 |
| Pin 61 | PD2 β GPIO / FMC_D4 |
| Pin 62 | PD3 β GPIO / FMC_D5 |
| Pin 63 | PD4 β GPIO / FMC_D6 |
| Pin 64 | PD5 β GPIO / FMC_D7 |
Safe Operating Area (SOA) & Thermal Characteristics
No official SOA curve available for this digital IC. Always operate within absolute maximum ratings specified in the datasheet. Ensure adequate cooling and derate as needed.
Typical Applications
STM32H735RGV6 is suitable for 6 applications: Industrial Automation, Motor Control, Medical Devices, Human-Machine Interface (HMI), Audio Processing, IoT Gateways.
Industrial Automation
The STM32H735RGV6 is ideal for industrial automation due to its high processing power (550 MHz Cortex-M7) and rich peripheral set. It can handle complex PLC logic, real-time control loops, and communication protocols like EtherCAT and PROFINET. The device's multiple timers and ADCs enable precise motor control and sensor interfacing. Its Ethernet and FDCAN interfaces facilitate seamless integration into industrial networks. The wide operating temperature range (-40Β°C to +85Β°C) ensures reliability in harsh environments. The cryptographic acceleration enhances security for secure communication and firmware updates.
Recommended
Motor Control
The STM32H735RGV6 excels in motor control applications, particularly field-oriented control (FOC) of BLDC and PMSM motors. The 550 MHz Cortex-M7 core with FPU and DSP instructions executes complex control algorithms with low latency. The device's high-resolution timers generate precise PWM signals, while the 12-bit ADCs (up to 5 MSPS) sample phase currents accurately. The built-in comparators and operational amplifiers simplify current sensing circuits. The Chrom-ART accelerator can be used for graphical user interfaces on motor drives. The device's robust communication interfaces (Ethernet, FDCAN) enable remote monitoring and diagnostics.
Recommended
Medical Devices
The STM32H735RGV6 is suitable for medical devices such as patient monitors, infusion pumps, and diagnostic equipment. Its high performance enables real-time signal processing for ECG, EEG, and other biosignals. The device's low power consumption and wide supply voltage range (1.62V to 3.6V) support battery-powered portable devices. The cryptographic acceleration ensures secure data transmission and patient privacy. The rich connectivity options (USB, Ethernet, UART) facilitate data logging and communication with hospital networks. The device's reliability and long-term availability make it a trusted choice for medical applications.
Recommended
Human-Machine Interface (HMI)
The STM32H735RGV6 is an excellent choice for HMI applications, such as industrial control panels and smart home displays. The Chrom-ART Accelerator offloads 2D graphics rendering from the CPU, enabling smooth and responsive user interfaces. The device's high clock speed ensures fast response to touch inputs and animations. It supports various display interfaces, including RGB LCD and MIPI DSI, through external controllers. The rich peripheral set (SPI, I2C, UART) allows easy integration of touch controllers, sensors, and communication modules. The device's large SRAM (564 KB) provides ample buffer for frame buffers and UI data.
Recommended
Audio Processing
The STM32H735RGV6 is well-suited for audio processing applications, including smart speakers, audio effects processors, and voice-controlled devices. The 550 MHz Cortex-M7 core with FPU and DSP instructions can handle real-time audio codecs (e.g., MP3, AAC) and advanced DSP algorithms like noise cancellation and equalization. The device's SAI (Serial Audio Interface) supports I2S and TDM formats, enabling connection to multiple audio codecs and amplifiers. The high-speed USB OTG HS allows streaming audio to and from a host. The device's low latency and deterministic performance ensure glitch-free audio output.
Recommended
IoT Gateways
The STM32H735RGV6 is ideal for IoT gateways that aggregate data from multiple sensors and devices. Its high processing power enables edge computing, such as data filtering and anomaly detection. The device's Ethernet and USB interfaces provide connectivity to local networks and hosts, while its multiple UARTs, SPI, and I2C interfaces connect to various sensors and modules. The cryptographic acceleration ensures secure communication (TLS/DTLS) and secure boot. The device's low power consumption and wide supply voltage range support battery-powered gateways. The rich peripheral set and large memory (1 MB flash, 564 KB SRAM) allow running a full network stack and application logic.
Recommended
Recommended Products Summary
Engineering reference data for STM32H735RGV6 β comparison, design guidance, and compliance information.
Selection Guide
Comparison with Alternatives
| Parameter | This Product | STM32H735RGV6T6 | STM32H743RGV6 | STM32H733RGV6 | STM32H750RGV6 | STM32H745RGV6 |
|---|---|---|---|---|---|---|
| Package | LQFP64 | LQFP64 | LQFP64 | LQFP64 | LQFP64 | LQFP64 |
| Brand | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Core | Cortex-M7 | Cortex-M7 | Cortex-M7 | Cortex-M7 | Cortex-M7 | Cortex-M7 + Cortex-M4 |
| Max Clock Speed | 550 MHz | 550 MHz | 480 MHz | 550 MHz | 480 MHz | 480 MHz |
| Flash Memory | 1 MB | 1 MB | 2 MB | 1 MB | 128 KB | 1 MB |
| SRAM | 564 KB | 564 KB | 1 MB | 564 KB | 128 KB | 1 MB |
| Chrom-ART Accelerator | Yes | Yes | Yes | Yes | Yes | Yes |
| Cryptographic Acceleration | Yes | Yes | Yes | Yes | Yes | Yes |
Key Differentiators
- Higher clock speed (550 MHz) than STM32H743RGV6 (480 MHz) (vs STM32H743RGV6)
- Lower cost than STM32H743RGV6 (vs STM32H743RGV6)
- Single-core simplicity vs STM32H745RGV6 dual-core (vs STM32H745RGV6)
Design Notes
The STM32H735RGV6 requires a clean power supply. Use a 100 nF decoupling capacitor on each VDD pin and a 4.7 uF capacitor on the VDDA pin. For the core voltage (VDDCORE), use the internal LDO or an external SMPS to generate 1.2V. Ensure the power supply can handle the peak current during flash programming and high-speed operation.
For the LQFP64 package, use a 4-layer PCB with a solid ground plane. Place the decoupling capacitors as close to the power pins as possible. Route high-speed signals (Ethernet, USB) with controlled impedance and keep them away from noisy traces. Use a crystal oscillator with load capacitors as specified in the datasheet.
The LQFP64 package has a thermal resistance (theta_JA) of approximately 45Β°C/W. For high-power applications, ensure adequate airflow or a heatsink. Monitor the junction temperature to stay within the operating range. Use the internal temperature sensor to measure the die temperature in real-time.
Compliance Information
RoHS compliant per STMicroelectronics. Not AEC-Q100 qualified; for automotive, consider STM32H7A3 or dedicated automotive MCUs.
