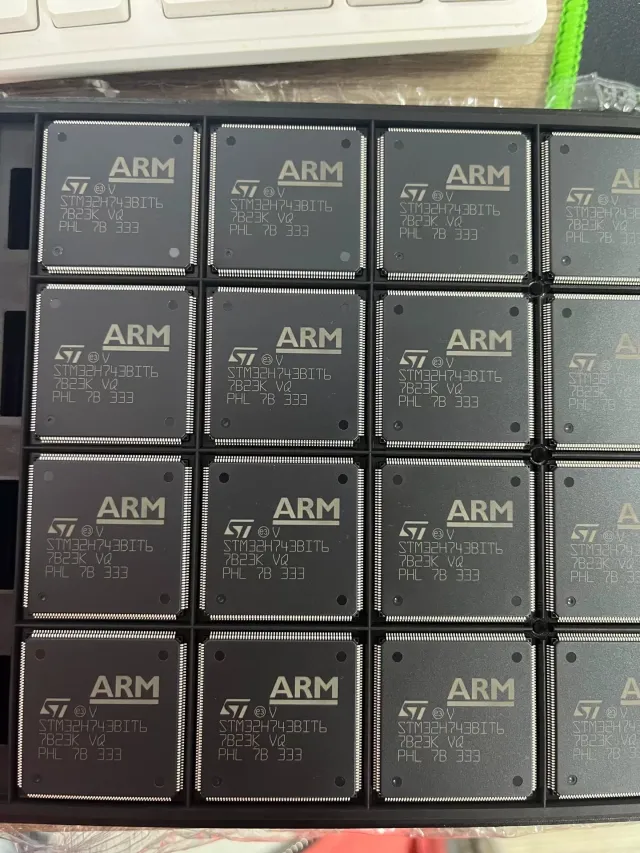

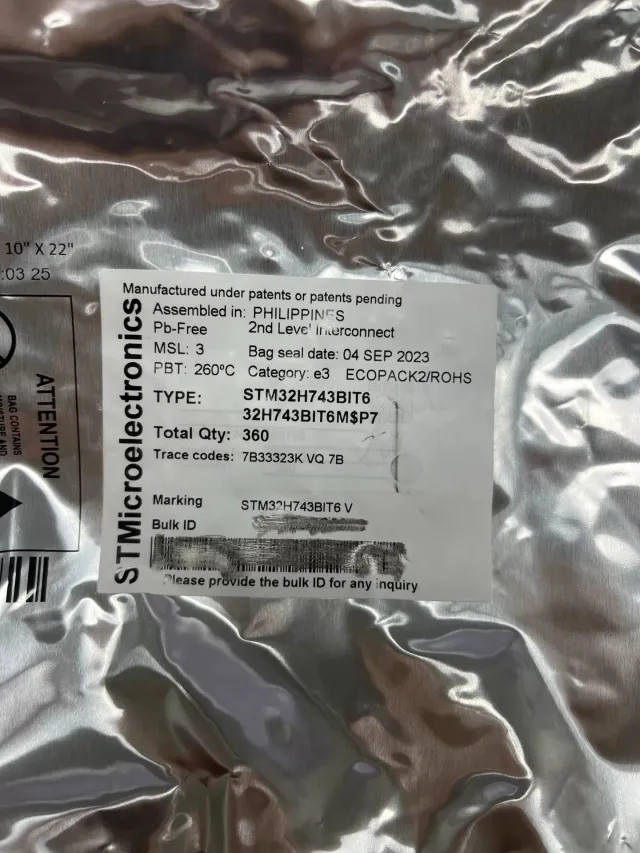

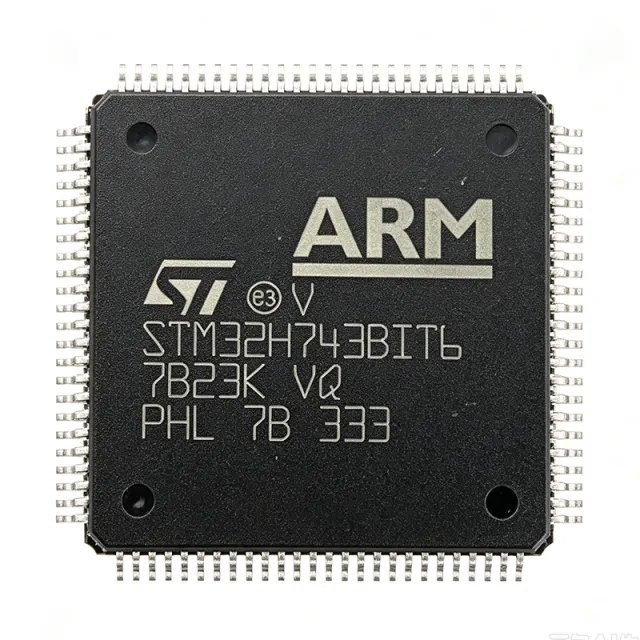

STM32H743BIT6 - 480MHz Cortex-M7 MCU | STMicroelectronics

Name: STM32H743BIT6
Brand: STMicroelectronics
Price: 18.50 USD
Availability: InStock

MPN: STM32H743BIT6 ✓ Active

In Stock (99,999) Ships in 1-3 business days

1.62 V to 3.6 V Vdss LQFP-208 Package 480 MHz Speed 2 MB Memory

$18.5 USD / Unit

MOQ: 1 |

Volume Pricing

Qty	Unit Price	Extended
1	$18.5	$18.50
10	$16.8	$168.00
100	$14.2	$1,420.00
500	$12.9	$6,450.00
1,000	$11.75	$11,750.00

ℹ️ All prices are in USD

View Datasheet (PDF) View Alternatives

Quantity

Drop-in alternatives for STM32H743BIT6 — same package, pin-to-pin compatible. Different-package parts requiring PCB rework are excluded.

Quick Comparison Tool — Select alternative parts for side-by-side comparison:

STM32H753BIT6

✅ Drop-In

📦 LQFP-208

Adds hardware cryptographic acceleration, same pinout

📋 Reference alternative (not in catalog)

STM32H743BGT6

✅ Drop-In

📦 LQFP-208

Same core and memory, different package variant (LQFP-208 vs LQFP-208)

📋 Reference alternative (not in catalog)

STM32H753BGT6

✅ Drop-In

📦 LQFP-208

Adds crypto, same package and pinout

📋 Reference alternative (not in catalog)

STM32H743BIT6 Maximum Ratings & Electrical Characteristics

Core	Arm Cortex-M7
Max Clock Speed	480 MHz
Flash Memory	2 MB
RAM	1 MB
Package	LQFP-208
Supply Voltage	1.62 V to 3.6 V
Operating Temperature	-40C to +85C
GPIO Pins	168
ADC	3x 16-bit, 3x 12-bit
DAC	2x 12-bit
Communication Interfaces	Ethernet, USB OTG HS/FS, CAN FD, SPI, I2C, UART, SDMMC
Security	TRNG, AES, HASH, Secure Boot
DMA	2x DMA controllers with 16 streams each
Timers	22 timers (including 2x 32-bit, 2x 16-bit, 2x low-power)
RoHS Status	Compliant

STM32H743BIT6 Pin Configuration

Pin 1	VDD — Digital power supply
Pin 2	VSS — Digital ground
Pin 3	PA0 — GPIO, ADC input, timer input
Pin 4	PA1 — GPIO, ADC input, timer input
Pin 5	PA2 — GPIO, USART2_TX, ADC input
Pin 6	PA3 — GPIO, USART2_RX, ADC input
Pin 7	PA4 — GPIO, SPI1_NSS, DAC output
Pin 8	PA5 — GPIO, SPI1_SCK, DAC output
Pin 9	PA6 — GPIO, SPI1_MISO, timer input
Pin 10	PA7 — GPIO, SPI1_MOSI, timer input
Pin 11	PA8 — GPIO, USB_OTG_FS_SOF, timer output
Pin 12	PA9 — GPIO, USART1_TX, USB_OTG_FS_VBUS
Pin 13	PA10 — GPIO, USART1_RX, USB_OTG_FS_ID
Pin 14	PA11 — GPIO, USB_OTG_FS_DM, CAN1_RX
Pin 15	PA12 — GPIO, USB_OTG_FS_DP, CAN1_TX
Pin 16	PA13 — GPIO, SWDIO
Pin 17	PA14 — GPIO, SWCLK
Pin 18	PA15 — GPIO, JTDI, timer input
Pin 19	VDD — Digital power supply
Pin 20	VSS — Digital ground

Safe Operating Area (SOA) & Thermal Characteristics

No official SOA curve available for this digital IC. Always operate within absolute maximum ratings specified in the datasheet. Ensure adequate cooling and derate as needed.

Typical Applications

STM32H743BIT6 is suitable for 6 applications: Industrial Motor Control, Robotics, Power Conversion, Audio Processing, Industrial IoT Gateway, High-End Consumer Electronics.

🏭

Industrial Motor Control

The STM32H743BIT6 is ideal for industrial motor control due to its high clock speed (480 MHz) and advanced timer peripherals. It can generate precise PWM signals for controlling motor speed and torque, while its multiple ADCs enable accurate current and voltage sensing. The device's CAN FD interface supports real-time communication in industrial networks, and its robust operating temperature range (-40C to +85C) ensures reliability in harsh factory environments. The large flash memory (2 MB) allows storing complex control algorithms, and the DSP instructions accelerate mathematical computations required for field-oriented control (FOC).

Recommended

STGIPQ5C60T-HZ (IGBT power module for motor drive) L6390 (Gate driver for power stage)

🤖

Robotics

In robotics, the STM32H743BIT6 provides the computational power needed for real-time control, sensor fusion, and communication. Its 480 MHz Cortex-M7 core can handle complex kinematics and trajectory planning, while the multiple UART, SPI, and I2C interfaces connect to various sensors and actuators. The device's DMA controllers offload data transfer, reducing CPU load. The large RAM (1 MB) supports buffering of sensor data and state estimation algorithms. The STM32H743BIT6's security features, such as secure boot, protect the robot's firmware from unauthorized access, which is critical in collaborative robots.

Recommended

L6470 (Stepper motor driver) VL53L0X (Time-of-flight distance sensor)

⚡

Power Conversion

The STM32H743BIT6 is well-suited for power conversion applications such as digital power supplies and inverters. Its high-speed ADCs (up to 3.6 MSPS) enable precise monitoring of voltage and current, while the advanced timers generate high-frequency PWM signals for controlling power switches. The device's 480 MHz clock allows implementing complex control algorithms like digital PID and predictive control. The CAN FD interface facilitates communication in power management systems. The STM32H743BIT6's low-power modes help reduce energy consumption in standby conditions, making it suitable for energy-efficient power converters.

Recommended

STGIPQ5C60T-HZ (IGBT module for power stage) L6390 (Gate driver)

🎧

Audio Processing

The STM32H743BIT6 excels in audio processing applications due to its high clock speed and DSP instructions. It can handle real-time audio effects, noise cancellation, and audio codec algorithms. The device's large RAM (1 MB) supports buffering of audio streams, and its multiple I2S interfaces connect to audio codecs and DACs. The Chrom-ART Accelerator can be used for audio visualization on displays. The STM32H743BIT6's low-latency interrupt handling ensures glitch-free audio output. Its USB OTG interface allows connection to audio hosts, making it suitable for USB audio devices.

Recommended

CS42L51 (Audio codec) TAS5754M (Digital audio amplifier)

🌐

Industrial IoT Gateway

The STM32H743BIT6 is an excellent choice for industrial IoT gateways, providing connectivity and processing capabilities. Its Ethernet MAC supports 10/100 Mbps networking, while USB OTG and CAN FD enable connection to various industrial devices. The device's security features, including TRNG and cryptographic acceleration, ensure secure communication. The 480 MHz core can handle protocol stacks and data processing, while the large flash memory (2 MB) stores firmware and configuration data. The STM32H743BIT6's multiple UARTs allow connection to legacy serial devices, making it a versatile gateway solution.

Recommended

LAN8742A (Ethernet PHY) SPBTLE-RF (Bluetooth Low Energy module)

📱

High-End Consumer Electronics

The STM32H743BIT6 is used in high-end consumer electronics such as smart home hubs, audio systems, and wearable devices. Its high performance enables rich user interfaces with graphics, thanks to the Chrom-ART Accelerator. The device's connectivity options (USB, Ethernet, wireless via external modules) allow seamless integration into smart home ecosystems. The large memory supports complex applications and over-the-air updates. The STM32H743BIT6's low-power modes extend battery life in portable devices. Its security features protect user data and ensure secure firmware updates.

Recommended

STM32WL55JC (Sub-GHz wireless MCU for IoT) LSM6DSO (Inertial measurement unit)

Recommended Products Summary

STGIPQ5C60T-HZ IGBT power module for motor drive Used in: Industrial Motor Control, Power Conversion L6390 Gate driver for power stage Used in: Industrial Motor Control, Power Conversion L6470 Stepper motor driver Used in: Robotics VL53L0X Time-of-flight distance sensor Used in: Robotics CS42L51 Audio codec Used in: Audio Processing TAS5754M Digital audio amplifier Used in: Audio Processing LAN8742A Ethernet PHY Used in: Industrial IoT Gateway SPBTLE-RF Bluetooth Low Energy module Used in: Industrial IoT Gateway STM32WL55JC Sub-GHz wireless MCU for IoT Used in: High-End Consumer Electronics LSM6DSO Inertial measurement unit Used in: High-End Consumer Electronics

What is the maximum clock speed of STM32H743BIT6?

The STM32H743BIT6 operates at a maximum clock speed of 480 MHz. According to the STMicroelectronics datasheet, the Arm Cortex-M7 core can run at up to 480 MHz, providing high compute performance for demanding applications.

How much flash memory does STM32H743BIT6 have?

The STM32H743BIT6 has 2 MB of flash memory. This large flash capacity allows storing complex firmware and data, making it suitable for applications requiring substantial code space.

What is the difference between STM32H743BIT6 and STM32H753BIT6?

The STM32H743BIT6 and STM32H753BIT6 are both high-performance MCUs from the STM32H7 series, but the STM32H753BIT6 includes additional security features such as a hardware cryptographic accelerator and secure firmware installation. Both share the same LQFP-208 package and 480 MHz Cortex-M7 core, making them drop-in replacements for many applications.

Can STM32H743BIT6 be used for motor control?

Yes, the STM32H743BIT6 is well-suited for motor control applications. Its high clock speed (480 MHz) and advanced timers (including PWM generation) enable precise control of motors. The device also includes multiple ADCs for current sensing and CAN FD for industrial communication.

What is the operating temperature range of STM32H743BIT6?

The STM32H743BIT6 operates over a temperature range of -40C to +85C. This industrial temperature range makes it suitable for harsh environments such as factory automation and outdoor equipment.

Where can I buy STM32H743BIT6 online?

The STM32H743BIT6 is available from major distributors such as DigiKey and Mouser. As of 2026-08-05, the price for a single unit is approximately $18.50 USD. Check current stock and pricing on their websites.

What is the price of STM32H743BIT6?

As of 2026-08-05, the price of STM32H743BIT6 is approximately $18.50 USD for a single unit, with volume discounts available. For example, at 1000 units, the price drops to around $11.75 USD per unit.

What is the lead time for STM32H743BIT6?

The lead time for STM32H743BIT6 varies by distributor and stock availability. As of 2026-08-05, DigiKey and Mouser typically show lead times of 1-2 weeks for this part. Check the distributor's website for real-time lead time information.

Is STM32H743BIT6 in stock?

Stock availability for STM32H743BIT6 changes frequently. As of 2026-08-05, DigiKey and Mouser may have limited stock. It is recommended to check their websites for current inventory status.

What is the best drop-in replacement for STM32H743BIT6?

The best drop-in replacement for STM32H743BIT6 is the STM32H753BIT6, which shares the same LQFP-208 package and pinout. The STM32H753BIT6 adds hardware cryptographic acceleration, making it a suitable upgrade for security-sensitive applications.

Can STM32H753BIT6 replace STM32H743BIT6?

Yes, the STM32H753BIT6 can replace the STM32H743BIT6 as it is pin-to-pin compatible and shares the same package. The STM32H753BIT6 offers additional security features, so it is a drop-in replacement with enhanced capabilities.

Where can I download the STM32H743BIT6 datasheet PDF?

The STM32H743BIT6 datasheet PDF can be downloaded from the STMicroelectronics website at https://www.st.com/resource/en/datasheet/stm32h743bi.pdf. This official datasheet provides complete specifications, pinout, and electrical characteristics.

Where can I find the STM32H743BIT6 pinout?

The STM32H743BIT6 pinout is detailed in the official datasheet, available at https://www.st.com/resource/en/datasheet/stm32h743bi.pdf. The pinout diagram shows the LQFP-208 package with all 208 pins and their functions.

What is the supply voltage range of STM32H743BIT6?

The STM32H743BIT6 operates with a supply voltage range of 1.62V to 3.6V. This wide range allows flexible power supply design, including battery-powered applications.

Does STM32H743BIT6 support Ethernet?

Yes, the STM32H743BIT6 includes an Ethernet MAC interface, supporting 10/100 Mbps Ethernet connectivity. This makes it suitable for industrial IoT and networked embedded systems.

What security features does STM32H743BIT6 have?

The STM32H743BIT6 includes a true random number generator (TRNG), cryptographic acceleration for AES and HASH algorithms, and secure boot support. These features enhance system security against unauthorized access and data tampering.

Is STM32H743BIT6 suitable for audio processing?

Yes, the STM32H743BIT6 is suitable for audio processing due to its high clock speed (480 MHz) and DSP instructions. It can handle real-time audio algorithms, and its large RAM (1 MB) supports buffering and processing of audio streams.

What development tools are compatible with STM32H743BIT6?

The STM32H743BIT6 is supported by STMicroelectronics' STM32CubeIDE, as well as Keil MDK-ARM, IAR EWARM, and GCC-based toolchains. The STM32CubeH7 firmware package provides HAL drivers and examples for rapid development.

Is STM32H743BIT6 RoHS compliant?

Yes, the STM32H743BIT6 is RoHS compliant. According to STMicroelectronics, the device meets the Restriction of Hazardous Substances directive, ensuring it is free from lead, mercury, and other restricted substances.

Engineering reference data for STM32H743BIT6 — comparison, design guidance, and compliance information.

Selection Guide

Choose the STM32H743BIT6 when you need a high-performance MCU with 480 MHz Cortex-M7, 2 MB flash, and 1 MB RAM for applications like motor control, robotics, and audio processing. If you require hardware cryptographic acceleration, select the STM32H753BIT6, which is pin-to-pin compatible and offers enhanced security. The STM32H743BGT6 is identical to the STM32H743BIT6 but may have different packaging options; verify the exact package variant. For applications with lower performance requirements, consider the STM32F746ZGT6, but note its lower clock speed and memory. All alternatives share the same LQFP-208 package, ensuring PCB layout compatibility.

Comparison with Alternatives

Parameter	This Product	STM32H753BIT6	STM32H743BGT6	STM32H753BGT6
Package	LQFP-208	LQFP-208 - same	LQFP-208 - same	LQFP-208 - same
Core Clock Speed	480 MHz	480 MHz	480 MHz	480 MHz
Flash Memory	2 MB	2 MB	2 MB	2 MB
RAM	1 MB	1 MB	1 MB	1 MB
Hardware Crypto	No	Yes	No	Yes
Ethernet MAC	Yes	Yes	Yes	Yes
USB OTG	HS/FS	HS/FS	HS/FS	HS/FS
Operating Temperature	-40C to +85C	-40C to +85C	-40C to +85C	-40C to +85C

Key Differentiators

Higher clock speed than many competitors (vs STM32F746ZGT6)
Larger RAM and flash (vs STM32F746ZGT6)
Hardware crypto available in alternative (vs STM32H753BIT6)

Design Notes

The STM32H743BIT6 requires a stable power supply. Use a 100nF decoupling capacitor on each VDD pin and a 4.7uF bulk capacitor on the main supply. For the internal LDO, connect the VCAP pins to ground with a 2.2uF capacitor. Ensure the supply voltage is within 1.62V to 3.6V.

For high-speed interfaces like Ethernet and USB, maintain controlled impedance traces (e.g., 90 ohms differential for USB). Keep traces short and use ground planes to minimize noise. Place the crystal oscillator close to the OSC pins and add load capacitors as specified in the datasheet.

The STM32H743BIT6 can dissipate significant power at 480 MHz. Ensure adequate thermal management by providing a copper pour on the PCB and, if necessary, a heatsink. The maximum junction temperature is 125C, so calculate the thermal budget based on the application's power consumption.
