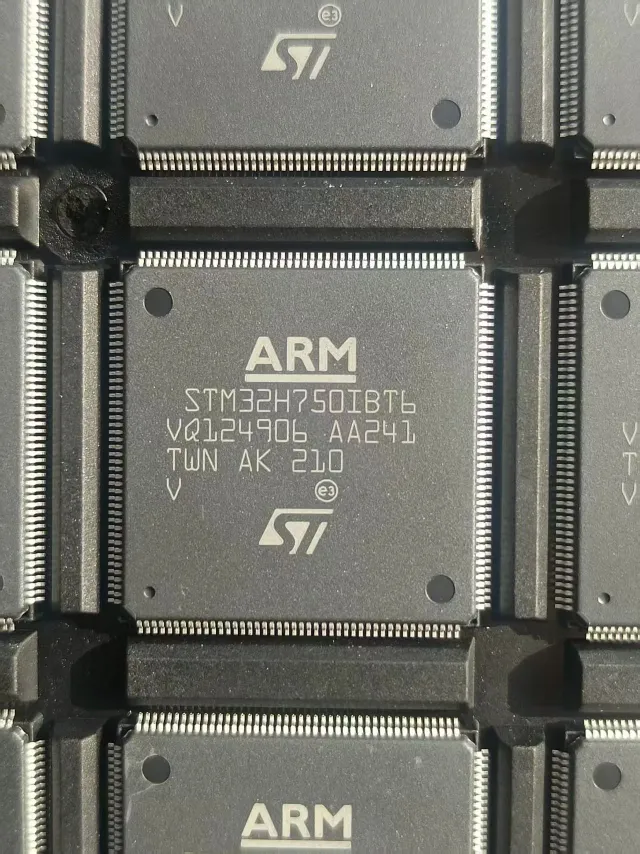

STM32H750IBT6 - 480MHz Cortex-M7 MCU with 1MB Flash | STMicroelectronics
MPN: STM32H750IBT6 β Active| Qty | Unit Price | Extended |
|---|---|---|
| 1 | $12.5 | $12.50 |
| 10 | $11.25 | $112.50 |
| 100 | $10 | $1,000.00 |
| 500 | $9 | $4,500.00 |
| 1,000 | $8.1 | $8,100.00 |
Drop-in alternatives for STM32H750IBT6 β same package, pin-to-pin compatible. Different-package parts requiring PCB rework are excluded.
Quick Comparison Tool β Select alternative parts for side-by-side comparison:
STM32H743IIT6
β Drop-Inπ Reference alternative (not in catalog)
STM32H753IIT6
β Drop-Inπ Reference alternative (not in catalog)
STM32H750IBT6 Maximum Ratings & Electrical Characteristics
| Core | ARM Cortex-M7 |
| Maximum Clock Speed | 480 MHz |
| Flash Memory | 1 MB |
| RAM | 1 MB |
| Supply Voltage Range | 1.62 V to 3.6 V |
| Operating Temperature Range | -40Β°C to +85Β°C |
| Package | LQFP176 (24x24 mm) |
| Number of Pins | 176 |
| GPIO Pins | 168 |
| ADC Channels | 3x 16-bit ADC (up to 36 channels) |
| DAC Channels | 2x 12-bit DAC |
| Timers | 22 timers (including 2x 32-bit, 2x 16-bit, 2x high-resolution) |
| Communication Interfaces | SPI (6), I2C (4), UART (4), USART (4), CAN (2), USB 2.0 OTG FS/HS, Ethernet MAC |
| Cryptographic Acceleration | AES, DES, 3DES, SHA-1, SHA-256, MD5 |
| DMA Channels | 2x DMA controllers with 16 streams each |
| RoHS Status | Compliant |
STM32H750IBT6 Pin Configuration
| Pin 1 | PE2 β GPIO / alternate function |
| Pin 2 | PE3 β GPIO / alternate function |
| Pin 3 | PE4 β GPIO / alternate function |
| Pin 4 | PE5 β GPIO / alternate function |
| Pin 5 | PE6 β GPIO / alternate function |
| Pin 6 | VDD β Power supply |
| Pin 7 | VSS β Ground |
| Pin 8 | PE7 β GPIO / alternate function |
| Pin 9 | PE8 β GPIO / alternate function |
| Pin 10 | PE9 β GPIO / alternate function |
| Pin 11 | PE10 β GPIO / alternate function |
| Pin 12 | PE11 β GPIO / alternate function |
| Pin 13 | PE12 β GPIO / alternate function |
| Pin 14 | PE13 β GPIO / alternate function |
| Pin 15 | PE14 β GPIO / alternate function |
| Pin 16 | PE15 β GPIO / alternate function |
| Pin 17 | PB10 β GPIO / alternate function |
| Pin 18 | PB11 β GPIO / alternate function |
| Pin 19 | VCAP1 β Internal voltage regulator capacitor |
| Pin 20 | VSS β Ground |
Safe Operating Area (SOA) & Thermal Characteristics
No official SOA curve available for this digital IC. Always operate within absolute maximum ratings specified in the datasheet. Ensure adequate cooling and derate as needed.
Typical Applications
STM32H750IBT6 is suitable for 6 applications: Industrial Motor Control, Human-Machine Interface (HMI), Audio Processing, IoT Gateway, Medical Devices, Power Conversion.
Industrial Motor Control
The STM32H750IBT6 is ideal for industrial motor control applications due to its high-resolution timers (HRTIM) that generate precise PWM signals, multiple 16-bit ADCs for accurate current and voltage sensing, and a 480 MHz Cortex-M7 core capable of executing complex field-oriented control (FOC) algorithms in real time. The device also includes CAN and Ethernet interfaces for industrial networking and remote monitoring. In a typical motor control system, the MCU reads current sensors via the ADCs, processes the FOC algorithm, and outputs PWM signals to the gate drivers. The high clock speed ensures low latency and high control loop frequency, improving motor efficiency and dynamic response. Additionally, the device's rich set of timers and DMA channels offloads the CPU, allowing for simultaneous communication and control tasks. The wide operating temperature range (-40Β°C to +85Β°C) makes it suitable for harsh industrial environments.
Recommended
Human-Machine Interface (HMI)
The STM32H750IBT6 is well-suited for HMI applications, featuring a TFT-LCD controller, Chrom-ART Accelerator, and JPEG codec that enable smooth graphics rendering and image display. The 480 MHz Cortex-M7 core can handle complex user interfaces with animations and touch processing. In a typical HMI system, the MCU drives a TFT-LCD panel via the LTDC interface, processes touch input from a capacitive touch controller, and communicates with the host system via Ethernet or USB. The Chrom-ART Accelerator offloads 2D graphics operations, freeing the CPU for other tasks. The device's large RAM (1 MB) allows for multiple framebuffers, reducing flicker and improving visual quality. Additionally, the integrated JPEG codec enables efficient image decoding for photo display applications. The rich connectivity options (USB, Ethernet, UART) facilitate integration into larger systems.
Recommended
Audio Processing
The STM32H750IBT6 is excellent for audio processing applications, offering a high clock speed (480 MHz), DSP instructions, and dedicated audio peripherals such as SAI (Serial Audio Interface) and DFSDM (Digital Filter for Sigma-Delta Modulators). It can handle real-time audio codecs, effects processing, and multi-channel audio. In a typical audio system, the MCU receives digital audio data via SAI or I2S, processes it using DSP algorithms (e.g., equalization, filtering), and outputs the processed audio to a DAC or amplifier. The high clock speed ensures low latency and high sample rate support. The device's large RAM (1 MB) allows for buffering of audio streams, and the DMA controllers enable efficient data transfer without CPU intervention. Additionally, the integrated audio PLL provides precise clock generation for audio sampling rates. The STM32H750IBT6 is suitable for applications such as audio interfaces, smart speakers, and professional audio equipment.
Recommended
IoT Gateway
The STM32H750IBT6 is a powerful choice for IoT gateway applications, providing a 480 MHz Cortex-M7 core, Ethernet MAC, USB OTG, and multiple communication interfaces (SPI, I2C, UART, CAN) to connect to various sensors and devices. It can handle protocol conversion, data aggregation, and secure communication. In a typical IoT gateway, the MCU collects data from sensors via UART, SPI, or I2C, processes it, and transmits it to the cloud via Ethernet or Wi-Fi (using an external module). The device's cryptographic acceleration (AES, SHA) ensures secure data transmission. The large RAM (1 MB) allows for buffering of data, and the DMA controllers enable efficient data transfer. The device also supports external memory via FMC for storing logs or firmware updates. The wide operating temperature range and industrial-grade reliability make it suitable for edge computing in industrial IoT.
Recommended
Medical Devices
The STM32H750IBT6 is suitable for medical devices such as patient monitors, infusion pumps, and diagnostic equipment, offering high performance, rich connectivity, and safety features. The 480 MHz Cortex-M7 core can handle complex signal processing algorithms, while the multiple ADCs and DACs enable precise analog signal acquisition and generation. In a typical medical device, the MCU reads vital signs sensors (e.g., ECG, SpO2) via ADCs, processes the signals using DSP algorithms, and displays the results on a TFT-LCD. The device's low power consumption in sleep modes is beneficial for battery-powered devices. The cryptographic acceleration ensures secure data storage and communication, complying with medical data privacy regulations. The device's wide operating temperature range and long-term availability make it suitable for medical applications.
Recommended
Power Conversion
The STM32H750IBT6 is ideal for power conversion applications such as digital power supplies, inverters, and battery chargers, offering high-resolution timers (HRTIM) for precise PWM generation, multiple ADCs for voltage and current sensing, and a 480 MHz Cortex-M7 core for implementing complex control algorithms like digital power control. In a typical power converter, the MCU reads voltage and current feedback via ADCs, runs a control loop (e.g., PID, state-space), and generates PWM signals to drive power switches. The high clock speed enables high control loop frequencies, improving transient response and efficiency. The device's rich set of timers and DMA channels offloads the CPU, allowing for simultaneous communication and monitoring. The wide operating temperature range and robust design make it suitable for industrial power supplies.
Recommended
Recommended Products Summary
Engineering reference data for STM32H750IBT6 β comparison, design guidance, and compliance information.
Selection Guide
Comparison with Alternatives
| Parameter | This Product | STM32H743IIT6 | STM32H753IIT6 | STM32H750VBT6 | STM32H743VIT6 | STM32H753VIT6 | i.MX RT1052 |
|---|---|---|---|---|---|---|---|
| Package | LQFP176 | LQFP176 | LQFP176 | LQFP100 | LQFP100 | LQFP100 | BGA196 |
| Brand | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | NXP Semiconductors |
| Core Clock Speed | 480 MHz | 480 MHz | 480 MHz | 480 MHz | 480 MHz | 480 MHz | 600 MHz |
| Flash Memory | 1 MB | 2 MB | 2 MB | 1 MB | 2 MB | 2 MB | 0 KB (external flash) |
| RAM | 1 MB | 1 MB | 1 MB | 1 MB | 1 MB | 1 MB | 512 KB |
| GPIO Pins | 168 | 168 | 168 | 82 | 82 | 82 | 124 |
| Cryptographic Acceleration | Yes (AES, DES, 3DES, SHA-1, SHA-256, MD5) | Yes (AES, DES, 3DES, SHA-1, SHA-256, MD5) | Yes (AES, DES, 3DES, SHA-1, SHA-256, MD5) | Yes (AES, DES, 3DES, SHA-1, SHA-256, MD5) | Yes (AES, DES, 3DES, SHA-1, SHA-256, MD5) | Yes (AES, DES, 3DES, SHA-1, SHA-256, MD5) | Yes (AES, SHA) |
| Price (1 unit) | $12.50 | $13.20 | $14.10 | $9.80 | $10.50 | $11.20 | $10.90 |
Key Differentiators
- Higher clock speed than many competitors (vs i.MX RT1052)
- Larger RAM (1 MB) compared to i.MX RT1052 (512 KB) (vs i.MX RT1052)
- Pin-compatible with higher-flash variants (vs STM32H743IIT6)
Design Notes
The STM32H750IBT6 requires a stable power supply. Connect a 100 nF decoupling capacitor to each VDD pin and a 4.7 uF capacitor to the VCAP1 pin for the internal voltage regulator. Ensure the power supply can handle the peak current of up to 280 mA at 480 MHz. Use a low-impedance ground plane to minimize noise.
For high-speed operation at 480 MHz, pay careful attention to PCB layout. Keep traces short and use controlled impedance for high-speed interfaces like Ethernet and USB. Place the crystal oscillator close to the MCU and ensure proper grounding. Use a multi-layer PCB with dedicated power and ground planes to reduce EMI.
Do not forget to configure the boot pins correctly. The STM32H750IBT6 can boot from flash, SRAM, or system memory. Also, ensure the VCAP1 pin is connected to a capacitor as specified in the datasheet; otherwise, the internal voltage regulator may not start. Avoid exceeding the absolute maximum ratings for supply voltage (3.6V) and I/O pins.
Compliance Information
RoHS and REACH compliant per STMicroelectronics. Not AEC-Q100 qualified (not intended for automotive).
