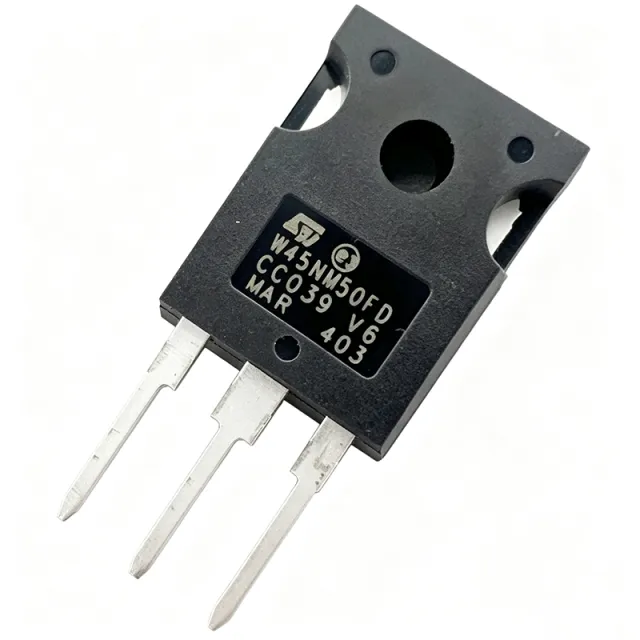

STW45NM50 - 45A, 500V N-Channel Power MOSFET | STMicroelectronics
MPN: STW45NM50 β Active| Qty | Unit Price | Extended |
|---|---|---|
| 1 | $4.5 | $4.50 |
| 10 | $4.05 | $40.50 |
| 100 | $3.6 | $360.00 |
| 500 | $3.24 | $1,620.00 |
| 1,000 | $2.88 | $2,880.00 |
Drop-in alternatives for STW45NM50 β same package, pin-to-pin compatible. Different-package parts requiring PCB rework are excluded.
Quick Comparison Tool β Select alternative parts for side-by-side comparison:
STW45NM50FP
β Drop-Inπ Reference alternative (not in catalog)
STW45NM50-1
β Drop-Inπ Reference alternative (not in catalog)
IRFP460
β Drop-Inπ Reference alternative (not in catalog)
IXFH46N50P
β Drop-Inπ Reference alternative (not in catalog)
FDP47AN15A0
β Drop-Inπ Reference alternative (not in catalog)
STW45NM50 Maximum Ratings & Electrical Characteristics
| Polarity | N-Channel |
| Drain-Source Voltage (VDS) | 500 V |
| Continuous Drain Current (ID) at 25Β°C | 45 A |
| Continuous Drain Current (ID) at 100Β°C | 30 A |
| Pulsed Drain Current (IDM) | 180 A |
| Gate-Source Voltage (VGS) | Β±30 V |
| On-Resistance (RDS(on)) | 0.09 ohm |
| Gate Charge (Qg) | 120 nC |
| Avalanche Energy (EAS) | 1.2 J |
| Power Dissipation (PD) | 450 W |
| Operating Temperature Range | -55Β°C to +150Β°C |
| Package | TO-247 |
| Mounting Type | Through Hole |
| RoHS Status | Compliant |
| Halogen Free | Yes |
STW45NM50 Pin Configuration
| Pin 1 | Gate β Gate drive input |
| Pin 2 | Drain β Drain connection |
| Pin 3 | Source β Source connection |
Safe Operating Area
Typical Applications
STW45NM50 is suitable for 6 applications: Switch-Mode Power Supplies (SMPS), Power Factor Correction (PFC), Motor Drives, Uninterruptible Power Supplies (UPS), Welding Equipment, Solar Inverters.
Switch-Mode Power Supplies (SMPS)
The STW45NM50 is ideal for SMPS due to its high voltage rating (500V) and low on-resistance (0.09 ohm). In a typical flyback or forward converter, the MOSFET switches at high frequency to regulate output voltage. Its low gate charge (120 nC) enables fast switching, reducing switching losses. The device's avalanche ruggedness (1.2 J) ensures reliability during load transients. Compared to IGBTs, the MOSFET offers higher efficiency at frequencies above 100 kHz. Designers should ensure proper gate drive voltage (10-15V) and adequate heatsinking to manage power dissipation, which can reach 450W at maximum. The TO-247 package facilitates heat transfer to a heatsink, making it suitable for power levels up to several kilowatts.
Recommended
Power Factor Correction (PFC)
In PFC circuits, the STW45NM50 is used in boost converters to shape the input current waveform. Its 500V VDS rating is sufficient for 400V bus systems, and its low RDS(on) minimizes conduction losses. The device's fast switching capability (low Qg) allows operation at high frequencies, reducing the size of magnetic components. The avalanche rating ensures robustness during line transients. For a typical 1kW PFC stage, the MOSFET dissipates around 20W, requiring a heatsink. The TO-247 package is well-suited for this application, providing low thermal resistance. Designers should consider the gate drive requirements and ensure proper layout to minimize parasitic inductance.
Recommended
Motor Drives
The STW45NM50 is suitable for motor drives, particularly in variable frequency drives (VFDs) for industrial motors. Its high current rating (45A) and voltage rating (500V) make it capable of driving motors up to several kilowatts. The low on-resistance reduces conduction losses, improving overall efficiency. The device's fast body diode helps reduce switching losses in bridge configurations. In a typical three-phase inverter, six MOSFETs are used, each switching at frequencies up to 20 kHz. The TO-247 package allows for easy mounting on heatsinks. Designers must ensure proper gate drive isolation and protection against overcurrent and overvoltage conditions.
Recommended
Uninterruptible Power Supplies (UPS)
In UPS systems, the STW45NM50 is used in the inverter stage to convert DC to AC. Its high voltage and current ratings allow it to handle the power requirements of UPS units ranging from 1kVA to 10kVA. The low RDS(on) ensures high efficiency, which is critical for battery life. The device's ruggedness against avalanche events is beneficial during load switching. In a typical UPS inverter, the MOSFETs are driven by a PWM signal at frequencies around 20 kHz. The TO-247 package facilitates thermal management, as the inverter stage can dissipate significant heat. Designers should consider the total power dissipation and provide adequate cooling.
Recommended
Welding Equipment
The STW45NM50 is used in inverter-based welding machines, where it switches at high frequencies to control the welding current. Its high current rating (45A) and voltage rating (500V) make it suitable for the demanding conditions of welding. The low on-resistance reduces power losses, improving efficiency and reducing heat generation. The device's ruggedness ensures reliability in harsh environments. In a typical welding inverter, the MOSFETs are used in a full-bridge configuration, switching at frequencies up to 100 kHz. The TO-247 package allows for effective heatsinking, which is essential as the device may dissipate over 100W. Designers should ensure proper gate drive and protection against overcurrent.
Recommended
Solar Inverters
In solar inverters, the STW45NM50 is used in DC-DC converters and the inverter stage to convert solar panel output to grid-compatible AC. Its high voltage rating (500V) is suitable for solar panel strings up to 400V. The low RDS(on) maximizes efficiency, which is crucial for energy harvesting. The device's fast switching reduces losses, improving overall system efficiency. In a typical solar inverter, the MOSFETs are used in a boost converter and a full-bridge inverter. The TO-247 package provides good thermal performance, essential for outdoor installations. Designers should consider the maximum power point tracking (MPPT) requirements and ensure proper thermal management.
Recommended
Recommended Products Summary
Engineering reference data for STW45NM50 β comparison, design guidance, and compliance information.
Selection Guide
Comparison with Alternatives
| Parameter | This Product | STW45NM50FP | IRFP460 | IXFH46N50P |
|---|---|---|---|---|
| Package | TO-247 | TO-247 (isolated) | TO-247 | TO-247 |
| Brand | STMicroelectronics | STMicroelectronics | Vishay | IXYS |
| Drain-Source Voltage (VDS) | 500 V | 500 V | 500 V | 500 V |
| Continuous Drain Current (ID) | 45 A | 45 A | 20 A | 46 A |
| On-Resistance (RDS(on)) | 0.09 ohm | 0.09 ohm | 0.27 ohm | 0.10 ohm |
| Gate Charge (Qg) | 120 nC | 120 nC | 210 nC | 110 nC |
| Avalanche Energy (EAS) | 1.2 J | 1.2 J | 0.5 J | 1.0 J |
| Power Dissipation (PD) | 450 W | 450 W | 280 W | 500 W |
Key Differentiators
- Lower on-resistance compared to IRFP460 (vs IRFP460)
- Higher avalanche energy rating (vs IRFP460)
- Higher current rating than IRFP460 (vs IRFP460)
Design Notes
The STW45NM50 can dissipate up to 450W at 25Β°C case temperature. In a typical SMPS application with VDS=400V and ID=10A, power dissipation is approximately 9W (I^2*R). Use a heatsink with thermal resistance below 0.5Β°C/W to keep junction temperature below 125Β°C. Ensure proper thermal interface material (TIM) is applied between the TO-247 tab and heatsink.
For high-frequency switching, minimize the gate drive loop area to reduce parasitic inductance. Place the gate resistor (typically 10 ohm) close to the gate pin. Use a low-inductance layout for the drain and source connections, and consider a snubber circuit across the drain-source to suppress voltage spikes. The TO-247 package has a large tab that should be connected to the drain or isolated, depending on the application.
Do not exceed the maximum VGS rating of Β±30V. Use a gate driver that provides a clean 10-15V gate drive signal. Ensure the device is not operated beyond the SOA, especially during short-circuit conditions. The avalanche rating of 1.2 J should not be exceeded; use a clamping circuit if necessary. Also, be aware that the body diode has a finite reverse recovery time, which can cause losses in bridge topologies.
Compliance Information
RoHS compliant and halogen-free per STMicroelectronics product page. Not AEC-Q100 qualified; for automotive, consider AEC-Q101 qualified variants.
