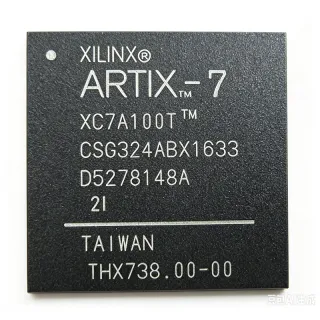

XC7A100T - Artix-7 FPGA 101K Logic Cells | AMD
MPN: XC7A100T β Active| Qty | Unit Price | Extended |
|---|---|---|
| 1 | $38.47 | $38.47 |
| 10 | $35.2 | $352.00 |
| 100 | $31.9 | $3,190.00 |
| 500 | $28.6 | $14,300.00 |
| 1,000 | $25.3 | $25,300.00 |
Drop-in alternatives for XC7A100T β same package, pin-to-pin compatible. Different-package parts requiring PCB rework are excluded.
Quick Comparison Tool β Select alternative parts for side-by-side comparison:
XC7A100T-2CSG324C
β Drop-Inβ 99,999 In Stock
$59.5 / Unit
View Datasheet βXC7A100T-1CSG324I
β Drop-Inβ 99,999 In Stock
$59.9 / Unit
View Datasheet βXC7A100T-2FG484I
β Drop-Inπ Reference alternative (not in catalog)
XC7A100T-1FTG256C
β Drop-Inπ Reference alternative (not in catalog)
XC7A100T-3FTG256E
β Drop-Inπ Reference alternative (not in catalog)
XA7A100T-1CSG324Q
β Drop-Inπ Reference alternative (not in catalog)
XC7A100T Maximum Ratings & Electrical Characteristics
| Family | Artix-7 |
| Logic Cells | 101440 |
| Slices | 15850 |
| Block RAM | 4860 Kb |
| DSP Slices | 240 |
| CMTs | 6 |
| User I/O (CSG324) | 210 |
| Package | CSG324 (324-LFBGA, CSPBGA) |
| Speed Grade | -1, -2, -3 |
| Temperature Range | C: 0Β°C to 85Β°C, I: -40Β°C to 100Β°C |
| Process Technology | 28nm |
| I/O Standards | LVCMOS, LVDS, HSTL, etc. |
| Transceivers | Up to 12.5 Gbps (select packages) |
| Configuration | SRAM-based, supports JTAG, SPI, BPI |
| RoHS | Compliant |
XC7A100T Pin Configuration
| Pin A1 | IO_L1P_T0 β User I/O pin, differential pair P |
| Pin A2 | IO_L1N_T0 β User I/O pin, differential pair N |
| Pin B1 | IO_L2P_T0 β User I/O pin, differential pair P |
| Pin B2 | IO_L2N_T0 β User I/O pin, differential pair N |
| Pin C1 | VCCINT β Internal core voltage (1.0V) |
| Pin C2 | GND β Ground |
| Pin D1 | VCCAUX β Auxiliary voltage (1.8V) |
| Pin D2 | VCCO_0 β I/O bank 0 supply voltage |
| Pin E1 | IO_L3P_T0 β User I/O pin, differential pair P |
| Pin E2 | IO_L3N_T0 β User I/O pin, differential pair N |
| Pin F1 | IO_L4P_T0 β User I/O pin, differential pair P |
| Pin F2 | IO_L4N_T0 β User I/O pin, differential pair N |
Safe Operating Area (SOA) & Thermal Characteristics
No official SOA curve available for this digital IC. Always operate within absolute maximum ratings specified in the datasheet. Ensure adequate cooling and derate as needed.
Typical Applications
XC7A100T is suitable for 6 applications: Software-Defined Radio, Motor Control, Industrial Networking, Medical Imaging, Video Processing, Prototyping and Education.
Software-Defined Radio
The XC7A100T's 240 DSP slices and 4,860 Kb of block RAM enable complex digital signal processing for SDR. Its low power consumption is ideal for portable and battery-operated radios. The FPGA can handle multiple channels, filtering, and modulation/demodulation in real-time, making it a popular choice for amateur radio and military communications.
Recommended
Motor Control
The XC7A100T provides high-speed PWM generation and closed-loop control for motor drives. Its DSP slices handle FOC (Field-Oriented Control) algorithms, while the FPGA's parallel processing ensures low latency. The device supports multiple motor channels and can interface with encoders and current sensors. Its low power and cost make it suitable for industrial automation and robotics.
Recommended
Industrial Networking
The XC7A100T supports various industrial Ethernet protocols like EtherCAT and PROFINET via soft IP cores. Its high I/O count and transceivers enable multiple network ports. The FPGA can handle real-time data processing and protocol bridging, making it ideal for industrial switches and gateways. Its reliability and long-term availability are key for industrial applications.
Recommended
Medical Imaging
The XC7A100T's high logic density and DSP capabilities are used in ultrasound and CT imaging systems for signal processing and image reconstruction. Its low power is beneficial for portable medical devices. The FPGA can handle real-time filtering, beamforming, and image enhancement. Its reliability and long lifecycle support medical device certification.
Recommended
Video Processing
The XC7A100T can implement video capture, scaling, and encoding for surveillance and broadcasting. Its block RAM and DSP slices handle pixel processing and compression. The FPGA supports multiple video standards and interfaces like HDMI and MIPI. Its low power and cost make it suitable for IP cameras and video conferencing systems.
Recommended
Prototyping and Education
The XC7A100T is widely used on development boards like the Nexys Video and Arty for teaching digital design and FPGA programming. Its balance of capacity and cost makes it ideal for students and hobbyists. The FPGA supports Vivado and VHDL/Verilog, enabling hands-on learning of digital logic, embedded systems, and signal processing.
Recommended
Recommended Products Summary
Engineering reference data for XC7A100T β comparison, design guidance, and compliance information.
Selection Guide
Comparison with Alternatives
| Parameter | This Product | XC7A100T-2CSG324C | XC7A100T-1CSG324I | XC7A100T-2FG484I | XC7A100T-1FTG256C |
|---|---|---|---|---|---|
| Package | CSG324 | CSG324 | CSG324 | FGG484 | FTG256 |
| Brand | AMD | AMD | AMD | AMD | AMD |
| Logic Cells | 101440 | 101440 | 101440 | 101440 | 101440 |
| Block RAM | 4860 Kb | 4860 Kb | 4860 Kb | 4860 Kb | 4860 Kb |
| DSP Slices | 240 | 240 | 240 | 240 | 240 |
| Speed Grade | -1 | -2 | -1 | -2 | -1 |
| Temperature Range | 0Β°C to 85Β°C | 0Β°C to 85Β°C | -40Β°C to 100Β°C | -40Β°C to 100Β°C | 0Β°C to 85Β°C |
| User I/O | 210 | 210 | 210 | 285 | 170 |
Key Differentiators
- Higher logic density than smaller Artix-7 parts (vs XC7A35T)
- Lower power than Kintex-7 (vs XC7K160T)
- Cost-effective for mid-range designs (vs XC7A200T)
Design Notes
The XC7A100T requires multiple power rails: VCCINT (1.0V), VCCAUX (1.8V), and VCCO (depending on I/O standard). Use low-dropout regulators or switching regulators with proper decoupling. Refer to the Artix-7 FPGA Power Management application note (XAPP706) for detailed recommendations. Ensure power sequencing meets the requirements in the data sheet to avoid damage.
For high-speed signals, maintain controlled impedance and minimize trace lengths. Use ground planes and proper bypass capacitors near the FPGA. The CSG324 package has a 0.8mm ball pitch, requiring fine-pitch PCB design. Follow the layout guidelines in UG475 for the Artix-7 package.
Ensure the configuration voltage (VCCO_0) is set correctly for the configuration mode (e.g., 2.5V for SPI). Do not leave unused pins floating; set them as outputs or tie them appropriately. Also, verify that the JTAG pins are not accidentally connected to other devices, as this can cause configuration issues.
Compliance Information
RoHS compliance is indicated on distributor pages. AEC-Q100 is not applicable for standard XC7A100T; automotive variants use XA prefix.
