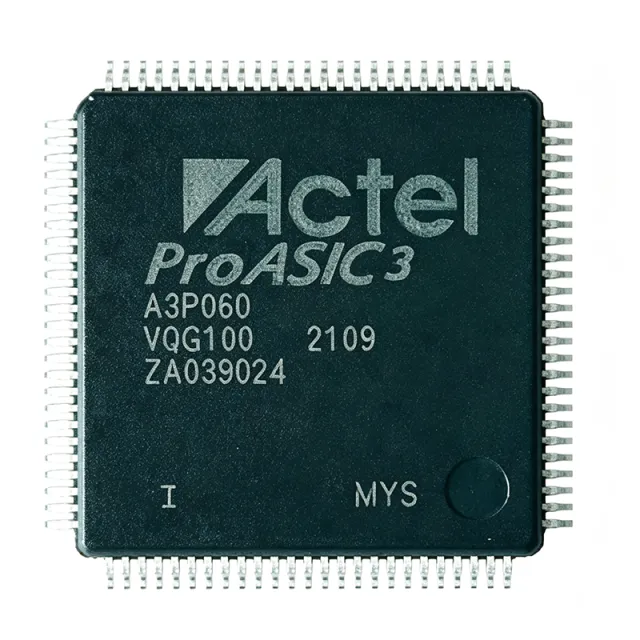

A3P060-VQG100I - ProASIC3 60K Gate FPGA | Microchip
MPN: A3P060-VQG100I ✓ Active| Qty | Unit Price | Extended |
|---|---|---|
| 1 | $9.7595 | $9.76 |
| 10 | $8.95 | $89.50 |
| 100 | $8.05 | $805.00 |
| 500 | $7.45 | $3,725.00 |
| 1,000 | $6.95 | $6,950.00 |
Drop-in alternatives for A3P060-VQG100I — same package, pin-to-pin compatible. Different-package parts requiring PCB rework are excluded.
Quick Comparison Tool — Select alternative parts for side-by-side comparison:
A3P060-VQG100
✅ Drop-In📋 Reference alternative (not in catalog)
A3P060-1VQG100I
✅ Drop-In ⚠️ 参数待验证📋 Reference alternative (not in catalog)
A3P060-2VQG100I
✅ Drop-In ⚠️ 参数待验证📋 Reference alternative (not in catalog)
A3P060-1VQ100T
✅ Drop-In📋 Reference alternative (not in catalog)
A3P060-1VQ100I
✅ Drop-In ⚠️ 参数待验证📋 Reference alternative (not in catalog)
A3P060-VQG100I Maximum Ratings & Electrical Characteristics
| Series | ProASIC3 |
| FPGA Family | ProASIC3 |
| Total System Gates | 60K Gates |
| Logic Elements | 700 LEs |
| User I/O Count | 71 |
| RAM Bits | 18,432 bits |
| Maximum System Performance | 231 MHz |
| Technology Process | 130 nm |
| Core Supply Voltage | 1.5 V |
| Package Type | 100-TQFP / VQFP-100 |
| Pin Count | 100 |
| Operating Temperature Range | -40°C to +100°C |
| Configuration Technology | Flash-based, reprogrammable |
| Mounting Type | Surface Mount |
| Packaging | Tray |
A3P060-VQG100I 100-tqfp / vqfp-100 Pin Configuration Guide
Complete pinout information for A3P060-VQG100I (100-tqfp / vqfp-100 package) with 100 pins. This digital IC includes GPIO, communication interfaces (UART, SPI, I2C), and power pins. Refer to the manufacturer datasheet for alternate pin functions and configuration options. Essential for embedded system design and PCB layout.
No detailed pinout data available for A3P060-VQG100I.
Refer to the datasheet for full pin configuration.
Estimated pin count: 100 pins (digital package)
Safe Operating Area (SOA) & Thermal Characteristics
No official SOA curve available for this digital IC. Always operate within absolute maximum ratings specified in the datasheet. Ensure adequate cooling and derate as needed.
Typical Applications
A3P060-VQG100I is suitable for 6 applications: Industrial Automation and Control, Wired and Wireless Communications, Test and Measurement Equipment, Medical Device Monitoring, Data Acquisition and Instrumentation, Aerospace and Defense Electronics.
Industrial Automation and Control
The A3P060-VQG100I fits industrial automation because its flash-based ProASIC3 core powers up instantly without an external configuration device, reducing system complexity and enabling deterministic I/O behavior. With 71 user I/O, 60K gates, and 700 logic elements it can integrate motor control logic, sensor conditioning, and fieldbus interfaces in a single 100-pin TQFP. The 1.5V core and 130nm process keep dynamic power low, while the -40°C to +100°C rating supports factory floors and outdoor equipment. Use it for PLC I/O modules, robot controllers, and conveyor safety logic. For higher capacity, scale to A3P250-FGG144I on a compatible ProASIC3 architecture.
Recommended
Wired and Wireless Communications
For communications equipment, the A3P060-VQG100I provides the instant-on operation and low power needed in line cards, protocol bridges, and small cell backhaul units. Its 71 I/O pins can interface to Ethernet PHYs, UARTs, SPI controllers, and parallel data buses, while the 231 MHz performance supports packet processing and protocol state machines. The flash-based configuration makes it secure against configuration bitstream snooping and removes the need for external boot memory, reducing board area and BOM cost. Industrial temperature operation suits remote radio units and outdoor small cells. For designs needing more resources, the A3P400-FG256I offers a larger ProASIC3 implementation.
Recommended
Test and Measurement Equipment
The A3P060-VQG100I is well suited to test and measurement because it combines 60K gates with instant-on configuration and industrial temperature range. Instrument modules can use its 71 I/O pins to acquire triggers, control analog front ends, and produce synchronized timing sequences. The flash-based FPGA retains its configuration without a host controller at power-up, which is critical for bench instruments that must be ready immediately. Its 1.5V core and 130nm process keep heat low inside dense enclosures. For modular instruments that require more I/O or logic capacity, the A3P250-FGG144I provides a pin-compatible architectural growth path.
Recommended
Medical Device Monitoring
Medical monitoring devices benefit from the A3P060-VQG100I's instant-on, secure flash configuration and low dynamic power. The FPGA can perform sensor data preprocessing, alarm logic, and interface bridging without loading the main microcontroller. Its 71 I/O pins handle multiple ADC and DAC interfaces, while the 18,432 RAM bits buffer short waveform segments. Industrial temperature support up to +100°C provides margin for patient-monitor environments. Because ProASIC3 is flash-based, the device supports secure in-system updates, enabling field upgrades of monitoring algorithms. For smaller form-factor designs, the A3P030-QNG48I provides a lower-density ProASIC3 alternative.
Recommended
Data Acquisition and Instrumentation
The A3P060-VQG100I supports data acquisition systems that need reliable power-up behavior and deterministic timing. Its 71 user I/O can be configured for parallel ADC/DAC interfaces, external memory buses, and trigger/distribution networks. The 60K gates and 700 logic elements are sufficient for multi-channel averaging, FIFO control, and custom digital signal processing tasks at moderate sample rates. With 18,432 RAM bits, it can buffer data between acquisition front ends and a host processor. The industrial temperature rating enables deployment in remote or outdoor instrumentation. The device's flash architecture also simplifies firmware updates in the field.
Recommended
Aerospace and Defense Electronics
In aerospace and defense electronics, the A3P060-VQG100I offers a combination of flash-based security, instant-on startup, and industrial temperature range. The FPGA can handle bus protocol conversion, discrete I/O supervision, and safety interlocks without exposing configuration memory to radiation-induced boot failures common with external configuration devices. Its 71 I/O pins connect to avionics discrete signals, MIL-STD-1553 bus controllers, or secondary monitor paths. The 130nm process provides a balance of density, power, and reliability for unmanned vehicles and rugged embedded systems. For higher-gate-count requirements, the A3P1000-FG144 extends the same ProASIC3 family.
Recommended
Recommended Products Summary
Engineering reference data for A3P060-VQG100I — comparison, design guidance, and compliance information.
Selection Guide
Comparison with Alternatives
| Parameter | This Product | A3P060-VQG100 | A3P060-1VQG100I | A3P060-2VQG100I | A3P060-1VQ100T |
|---|---|---|---|---|---|
| Brand | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Package | 100-TQFP (VQFP) | 100-TQFP (VQFP) | 100-TQFP (VQFP) | 100-TQFP (VQFP) | 100-TQFP (VQFP) |
| System Gates | 60K | 60K | 60K | 60K | 60K |
| Logic Elements | 700 LEs | 700 LEs | 700 LEs | 700 LEs | 700 LEs |
| User I/O Count | 71 | 71 | 71 | 71 | 71 |
| RAM Bits | 18,432 bits | 18,432 bits | 18,432 bits | 18,432 bits | 18,432 bits |
| Core Supply Voltage | 1.5 V | 1.5 V | 1.5 V | 1.5 V | 1.5 V |
| Operating Temperature Range | -40°C to +100°C | 0°C to +70°C | -40°C to +100°C | -40°C to +100°C | [DATA_NEEDED: Temperature grade] |
| Configuration Technology | Flash-based | Flash-based | Flash-based | Flash-based | Flash-based |
Key Differentiators
- Industrial temperature range in a true drop-in VQG100 package (vs A3P060-VQG100)
- Cost-optimized standard speed grade (vs A3P060-1VQG100I)
- Instant-on flash configuration without external boot memory (vs A3P060-1VQ100T)
Design Notes
The A3P060-VQG100I requires a 1.5V core supply. Add a 100nF ceramic capacitor at every core supply pin and at least one 10uF bulk capacitor near the device to handle transient currents. If the board uses separate I/O bank voltages, verify each bank's recommended capacitor placement from the ProASIC3 layout guidelines. Estimated: a poorly decoupled 1.5V rail can produce supply droop of tens of millivolts under simultaneous switching output, which may degrade timing margin.
For the 100-pin TQFP/VQFP package, keep the exposed thermal pad, if present, connected to the recommended thermal/ground plane with multiple thermal vias. Route high-speed clock inputs with controlled impedance and avoid long unterminated stubs. Keep I/O traces to the FPGA balanced for signals that connect to RAM or ADCs. Follow Microchip's pin-out guidelines to minimize crosstalk between adjacent switching I/O pins.
Because ProASIC3 is flash-based, the device retains its configuration on power-up. Use the built-in FlashLock security to prevent readback or unauthorized reprogramming. Program the device through JTAG using Microchip's programming tools. Consider adding a JTAG header for in-system firmware updates; protect the JTAG port in production systems to avoid unintended reconfiguration.
Compliance Information
Compliance status is not explicitly stated in the provided verified web data. Users should confirm RoHS/REACH status from the Microchip product page or packaging markings.
