NT5CC256M16ER-EKI - 4Gb DDR3L SDRAM 256Mx16 | Nanya
MPN: NT5CC256M16ER-EKI β Active| Qty | Unit Price | Extended |
|---|---|---|
| 1 | $26.62 | $26.62 |
| 10 | $24.5 | $245.00 |
| 100 | $22 | $2,200.00 |
| 500 | $20 | $10,000.00 |
| 1,000 | $18 | $18,000.00 |
Drop-in alternatives for NT5CC256M16ER-EKI β same package, pin-to-pin compatible. Different-package parts requiring PCB rework are excluded.
Quick Comparison Tool β Select alternative parts for side-by-side comparison:
NT5CC256M16ER-EK
β Drop-Inβ 99,999 In Stock
$24 / Unit
View Datasheet βMT41K256M16HA-125
β Drop-Inβ 99,999 In Stock
$5.6 / Unit
View Datasheet βK4B4G1646F
β Drop-Inπ Reference alternative (not in catalog)
H5TQ1G83AFR
β Drop-Inπ Reference alternative (not in catalog)
AS4C256M16D3LC-10BCN
β Drop-Inπ Reference alternative (not in catalog)
NT5CC256M16ER-EKI Maximum Ratings & Electrical Characteristics
| Memory Type | DDR3L SDRAM |
| Density | 4 Gbit |
| Organization | 256M x 16 |
| Supply Voltage | 1.35 V (1.5 V compatible) |
| Data Rate | 933 MHz (DDR3L-1866) |

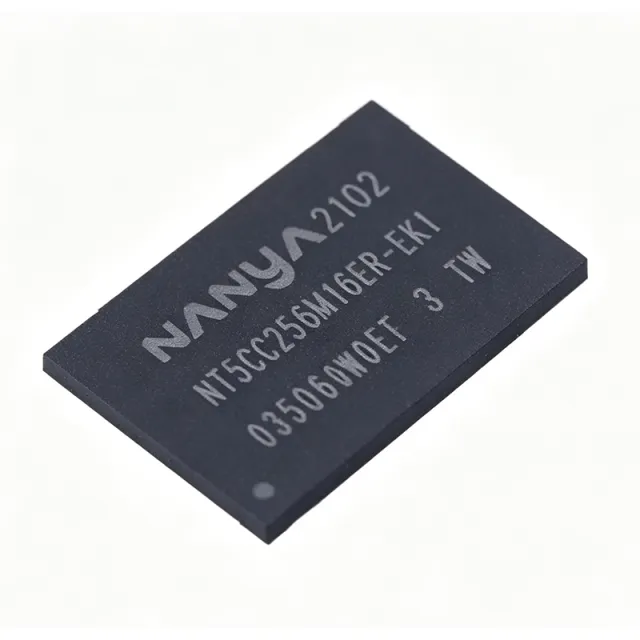

| Package | 96-ball TFBGA |
| Operating Temperature | -40Β°C to +95Β°C |
| Auto Self-Refresh | Yes |
| Auto Precharge | Yes |
| Asynchronous Reset | Yes |
| Write Leveling | Yes |
| Dynamic On-Chip Termination | Yes |
| ZQ Calibration | Yes |
| RoHS | Compliant |
| Mounting Type | Surface Mount |
NT5CC256M16ER-EKI Pin Configuration
| Pin A1 | VDD β Power supply |
| Pin A2 | DQ0 β Data input/output 0 |
| Pin A3 | DQ1 β Data input/output 1 |
| Pin A4 | VSS β Ground |
| Pin A5 | DQ2 β Data input/output 2 |
| Pin A6 | DQ3 β Data input/output 3 |
| Pin A7 | VDD β Power supply |
| Pin A8 | DQ4 β Data input/output 4 |
| Pin A9 | DQ5 β Data input/output 5 |
| Pin A10 | VSS β Ground |
| Pin A11 | DQ6 β Data input/output 6 |
| Pin A12 | DQ7 β Data input/output 7 |
| Pin B1 | VSS β Ground |
| Pin B2 | DQ8 β Data input/output 8 |
| Pin B3 | DQ9 β Data input/output 9 |
| Pin B4 | VDD β Power supply |
| Pin B5 | DQ10 β Data input/output 10 |
| Pin B6 | DQ11 β Data input/output 11 |
| Pin B7 | VSS β Ground |
| Pin B8 | DQ12 β Data input/output 12 |
| Pin B9 | DQ13 β Data input/output 13 |
| Pin B10 | VDD β Power supply |
| Pin B11 | DQ14 β Data input/output 14 |
| Pin B12 | DQ15 β Data input/output 15 |
Safe Operating Area (SOA) & Thermal Characteristics
No official SOA curve available for this digital IC. Always operate within absolute maximum ratings specified in the datasheet. Ensure adequate cooling and derate as needed.
Typical Applications
NT5CC256M16ER-EKI is suitable for 6 applications: Industrial Computing, Networking Equipment, Automotive Infotainment, Embedded Systems, Data Storage Systems, Test and Measurement.
Industrial Computing
The NT5CC256M16ER-EKI is ideal for industrial PCs and embedded systems that require reliable memory operation in harsh environments. Its industrial temperature range (-40Β°C to +95Β°C) ensures stable performance in factories and outdoor installations. The 4Gb density and 16-bit bus provide sufficient capacity for operating systems and applications, while the low 1.35V operation reduces power consumption and heat generation, which is critical in sealed enclosures. The DDR3L interface is widely supported by industrial processors from Intel and AMD, making integration straightforward.
Recommended
Networking Equipment
In networking routers, switches, and firewalls, the NT5CC256M16ER-EKI provides high-bandwidth memory for packet buffering and routing tables. The 933MHz data rate supports line-rate processing, while the 4Gb density accommodates large forwarding databases. The auto self-refresh feature reduces power in idle states, which is important for energy-efficient network devices. The 96-ball TFBGA package allows compact PCB layouts, enabling high port density. Its industrial temperature rating ensures reliability in telecom cabinets with limited cooling.
Recommended
Automotive Infotainment
The NT5CC256M16ER-EKI is suitable for automotive infotainment systems, providing memory for navigation, multimedia, and instrument clusters. Its wide temperature range (-40Β°C to +95Β°C) meets automotive requirements, and the 1.35V operation reduces power draw from the vehicle's electrical system. The DDR3L interface is compatible with automotive SoCs from NXP and Renesas. The 4Gb density supports complex UI graphics and audio/video playback. The device's robustness and long-term availability make it a reliable choice for automotive applications.
Recommended
Embedded Systems
For general embedded systems, the NT5CC256M16ER-EKI offers a balance of capacity, speed, and power efficiency. Its 4Gb density is suitable for applications like medical devices, test equipment, and robotics. The 1.35V operation is ideal for battery-powered devices, extending operational life. The 96-ball TFBGA package is compact, fitting into space-constrained designs. The device supports standard DDR3L features like write leveling and ODT, simplifying PCB design. Its industrial temperature range allows use in outdoor and extreme environments.
Recommended
Data Storage Systems
In NAS, SAN, and server systems, the NT5CC256M16ER-EKI provides high-speed memory for caching and metadata management. The 933MHz data rate ensures fast I/O processing, while the 4Gb density supports large cache pools. The low 1.35V operation reduces power consumption in data centers, contributing to energy savings. The device's reliability and industrial temperature range make it suitable for 24/7 operation. The 16-bit bus width allows easy integration with storage controllers and SoCs.
Recommended
Test and Measurement
The NT5CC256M16ER-EKI is used in oscilloscopes, logic analyzers, and signal generators for data acquisition and processing. Its high bandwidth (933MHz) enables fast sampling and real-time analysis. The 4Gb density provides ample buffer for waveform storage. The industrial temperature range ensures accuracy in lab and field environments. The 1.35V operation reduces heat, improving instrument stability. The device's compatibility with standard DDR3L controllers simplifies design in custom test equipment.
Recommended
Recommended Products Summary
Engineering reference data for NT5CC256M16ER-EKI β comparison, design guidance, and compliance information.
Selection Guide
Comparison with Alternatives
| Parameter | This Product | NT5CC256M16ER-EK | MT41K256M16HA-125 | K4B4G1646F | H5TQ1G83AFR |
|---|---|---|---|---|---|
| Package | 96-ball TFBGA | 96-ball TFBGA | 96-ball TFBGA | 96-ball TFBGA | 96-ball TFBGA |
| Brand | Nanya Technology | Nanya Technology | Micron Technology | Samsung Electronics | SK Hynix |
| Density | 4 Gbit | 4 Gbit | 4 Gbit | 4 Gbit | 4 Gbit |
| Organization | 256M x 16 | 256M x 16 | 256M x 16 | 256M x 16 | 256M x 16 |
| Supply Voltage | 1.35V (1.5V compatible) | 1.35V | 1.35V | 1.35V | 1.35V |
| Data Rate | 933 MHz | 933 MHz | 933 MHz | 933 MHz | 933 MHz |
| Operating Temperature | -40Β°C to +95Β°C | [DATA_NEEDED] | 0Β°C to +95Β°C | 0Β°C to +95Β°C | 0Β°C to +95Β°C |
| RoHS | Compliant | Compliant | Compliant | Compliant | Compliant |
Key Differentiators
- Industrial temperature range (vs MT41K256M16HA-125)
- Low voltage operation (vs K4B4G1646F)
- Same-brand drop-in (vs NT5CC256M16ER-EK)
Design Notes
Ensure proper decoupling capacitors (0.1uF and 1uF) are placed close to each VDD and VDDQ pin to minimize power supply noise. Follow the layout guidelines in the Nanya datasheet for trace impedance matching (typically 50 ohms for data lines) and length matching for DQ, DQS, and address/control signals to ensure signal integrity at 933MHz.
The NT5CC256M16ER-EKI operates over -40Β°C to +95Β°C. In high-temperature environments, ensure adequate airflow or heatsinking to keep the junction temperature within limits. The 1.35V operation reduces power dissipation compared to 1.5V DDR3, but still consider the thermal resistance of the TFBGA package and provide thermal vias under the package if needed.
Verify that the memory controller supports 1.35V DDR3L operation. Some controllers may only support 1.5V DDR3, which could cause compatibility issues. Also, ensure the ZQ calibration resistor (240 ohm Β±1%) is connected to the ZQ pin, and that the ODT settings are correctly programmed in the mode registers to match the system topology.
Compliance Information
RoHS compliant per LCSC and JLCPCB listings. REACH and conflict minerals status not specified in provided data.
