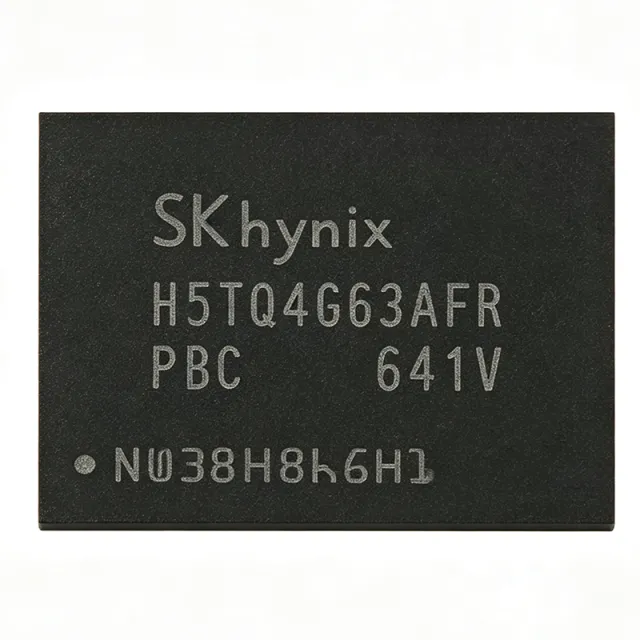

H5TQ4G63AFR-H9C - 4Gb DDR3 SDRAM 256Mx16 | SK Hynix

Name: H5TQ4G63AFR-H9C
Brand: SK Hynix
Price: 8.50 USD
Availability: InStock

MPN: H5TQ4G63AFR-H9C ✓ Active

In Stock (99,999) Ships in 1-3 business days

1.5V Vdss TFBGA-96 Package 0.255ns Speed DDR3 SDRAM Memory

$8.5 USD / Unit

MOQ: 1 |

Volume Pricing

Qty	Unit Price	Extended
1	$8.5	$8.50
10	$7.8	$78.00
100	$7.1	$710.00
500	$6.5	$3,250.00
1,000	$5.9	$5,900.00

ℹ️ All prices are in USD

View Datasheet (PDF) View Alternatives

Quantity

Drop-in alternatives for H5TQ4G63AFR-H9C — same package, pin-to-pin compatible. Different-package parts requiring PCB rework are excluded.

Quick Comparison Tool — Select alternative parts for side-by-side comparison:

H5TQ4G63AFR-H9I

✅ Drop-In

📦 TFBGA-96

Lower speed grade (slower tCK) compared to H9C

📋 Reference alternative (not in catalog)

H5TQ4G63MFR-H9C

✅ Drop-In

📦 TFBGA-96

Similar 4Gb DDR3, but may have different timing or features

📋 Reference alternative (not in catalog)

K4B4G1646E-BYK0

✅ Drop-In

Samsung Electronics

📦 FBGA-96

DDR3L SDRAM · 4 Gb · 256M x 16 · 1.35 V (1.283 V to 1.45 V) · DDR3-1600 (800 MHz) · 96-ball FBGA (13 x 9 mm, 0.8 mm pitch) · 0°C to +95°C (TC) · 11 (CL-tRCD-tRP)

✓ 99,999 In Stock

$1.8 / Unit

View Datasheet →

MT41K256M16LY-107:N

✅ Drop-In

Micron Technology

📦 FBGA-96

SDRAM - DDR3L · 4 Gbit · 256M x 16 · 16 bit · 933 MHz · 20 ns · 1.35 V · 96-FBGA (7.5x13.5)

✓ 99,999 In Stock

$8.1 / Unit

View Datasheet →

MT41K256M16LY-107 M:N

✅ Drop-In

📦 FBGA-96

Cross-brand equivalent, same 4Gb DDR3 256Mx16, pin-compatible

📋 Reference alternative (not in catalog)

H5TQ4G63AFR-H9C Maximum Ratings & Electrical Characteristics

Memory Type	DDR3 SDRAM
Density	4Gb
Organization	256M x 16
Supply Voltage	1.5V
Clock Speed (tCK)	0.255ns
Refresh Cycles	8192
Package	TFBGA-96
